TOKU Pneumatic
-
Designed for concrete breaking, demolition, and surface preparation
-
Known for high impact energy, rugged construction, and long service life
-
Ideal for construction sites and heavy-duty industrial applications
TPB-60 and TPB-90

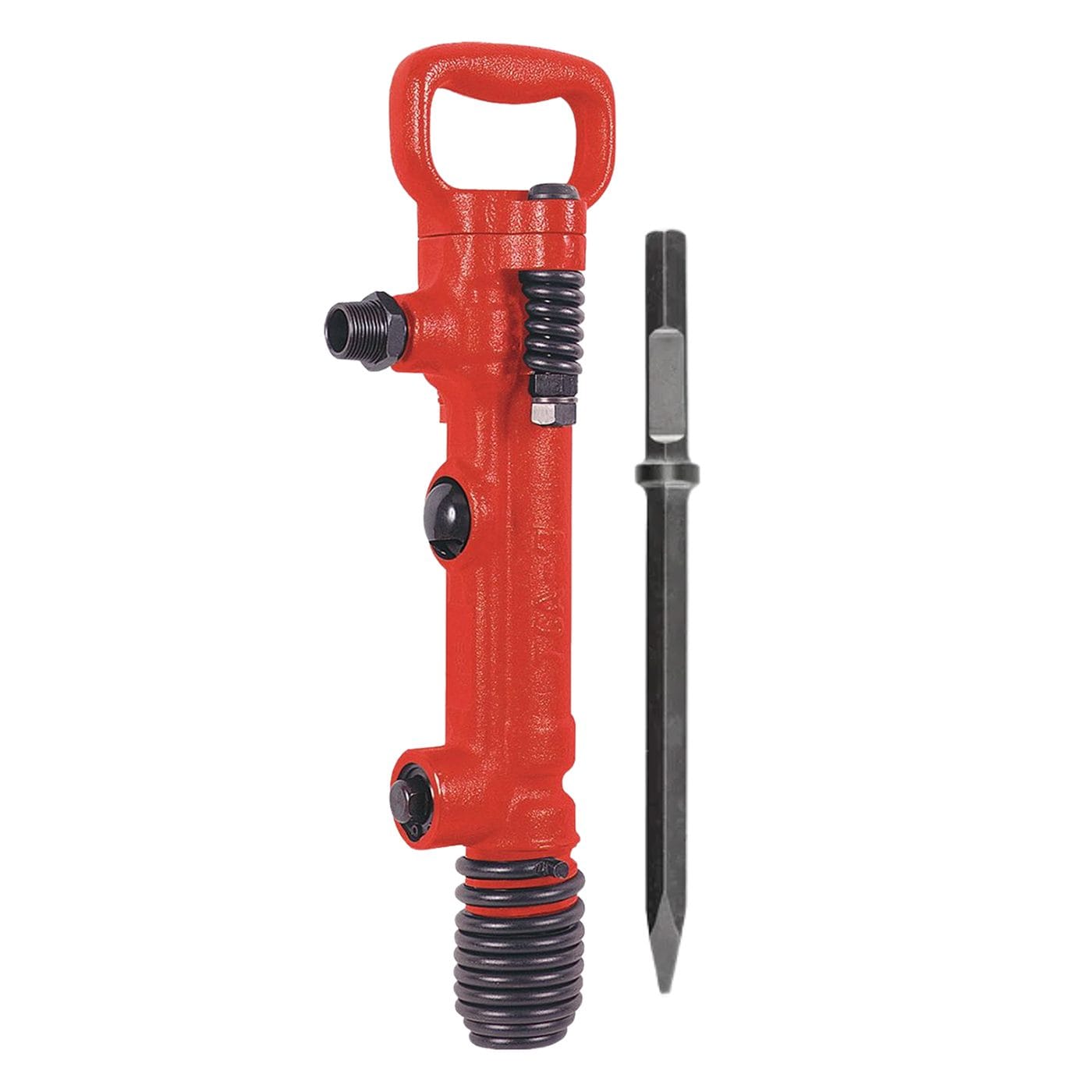

TCA-7
| MODEL | TPB-60 | TPB-90 | TCA-7 |
|---|---|---|---|
| Piston Diameter | 57.15 mm | 66.6 mm | 35 mm |
| Piston Stroke | 100 mm | 152 mm | 120 mm |
| Blows per Minute (BPM) | 1400 | 1250 | 1250 |
| Net Weight | 30 kg (66 lb) | 42 kg (93 lb) | 7.2 kg (16 lb) |
| Overall Length | 645 mm | 725 mm | 465 mm |
| Air Consumption | 1.7 m³/min (58 cfm) | 2.2 m³/min (78 cfm) | 1.0 m³/min (35.3 cfm) |
| Hose Size | 19 mm | 19 mm | 19 mm |
| Shank Size | 1-1/8” * 6” or 1-1/4” * 6” | 1-1/8” * 6” or 1-1/4” * 6” | R26 * 80 |
| Air Inlet | 3/4” | 3/4” | 3/4” |
