Description
A 3-horsepower high-pressure unit. It features a robust two-stage compression design. The "P" in the H-P version typically denotes a package with additional control features or a specific pressure switch configuration.
Category: Fusheng, HP

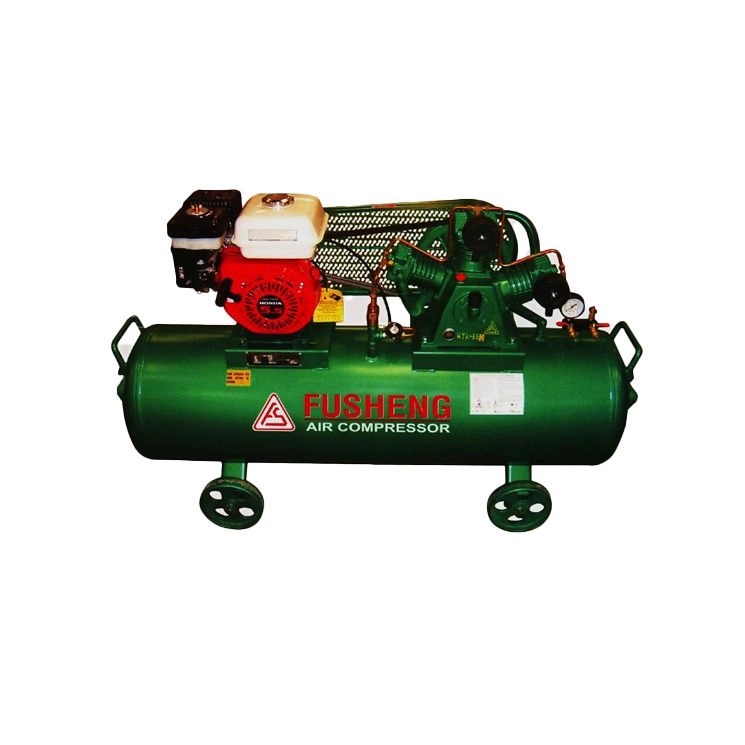

| MODEL HTA-65H (1PH) | |
|---|---|
| SPECIFICATIONS | |
| Phase | 1PH |
| Motor HP | 3 |
| Motor Kw | 2.2 |
| Cylinder Bore (mm) | 65 |
| No. of Cylinders | 2 |
| Cylinder Stroke (mm) | 48 |
| Comp. RPM | 916 |
| Piston Displacement (L/min) | 292 |
| Working Pressure (kg/cm²) | |
| Air Receiver Capacity Liter (L) | 105 |
| Air Receiver Max Pressure (kg/cm²) | |
